RAG-Enhanced Generative AI for Communication Standards Compliance and Protocol Equivalence Verification

By /

Overview

The “RAG-Enhanced Generative AI for Communication Standards Compliance and Protocol Equivalence Verification” project introduces a state-of-the-art framework for automating the verification of communication standards compliance and ensuring equivalence between messages across different communication protocols. By utilizing Retrieval-Augmented Generation (RAG), advanced Generative AI, and protocol-specific knowledge, the system evaluates whether communication packets adhere to relevant standards and if messages transmitted in different formats convey the same meaning. This framework is designed to streamline compliance audits, enhance cross-protocol compatibility, and reduce manual verification efforts.

System Architecture and Workflow

  1. Data Ingestion & Preprocessing Phase
    • Input: Communication data from protocols such as XML, JSON, and others, alongside standard documentation.
    • Processing: Data is cleansed, normalized, and structured into a consistent format for downstream tasks.
    • Output: Preprocessed datasets ready for compliance analysis and equivalence verification.
  1. Knowledge Retrieval Phase
    • Core Mechanism: Retrieval-Augmented Generation (RAG) integrates transformer-based models with a domain-specific repository of communication standards.
    • Processing:
      • Dynamically retrieves relevant sections of protocol standards based on the context of the query.
      • Refines results through semantic similarity metrics.
    • Output: Standards documentation fragments tailored to the communication protocol under review.

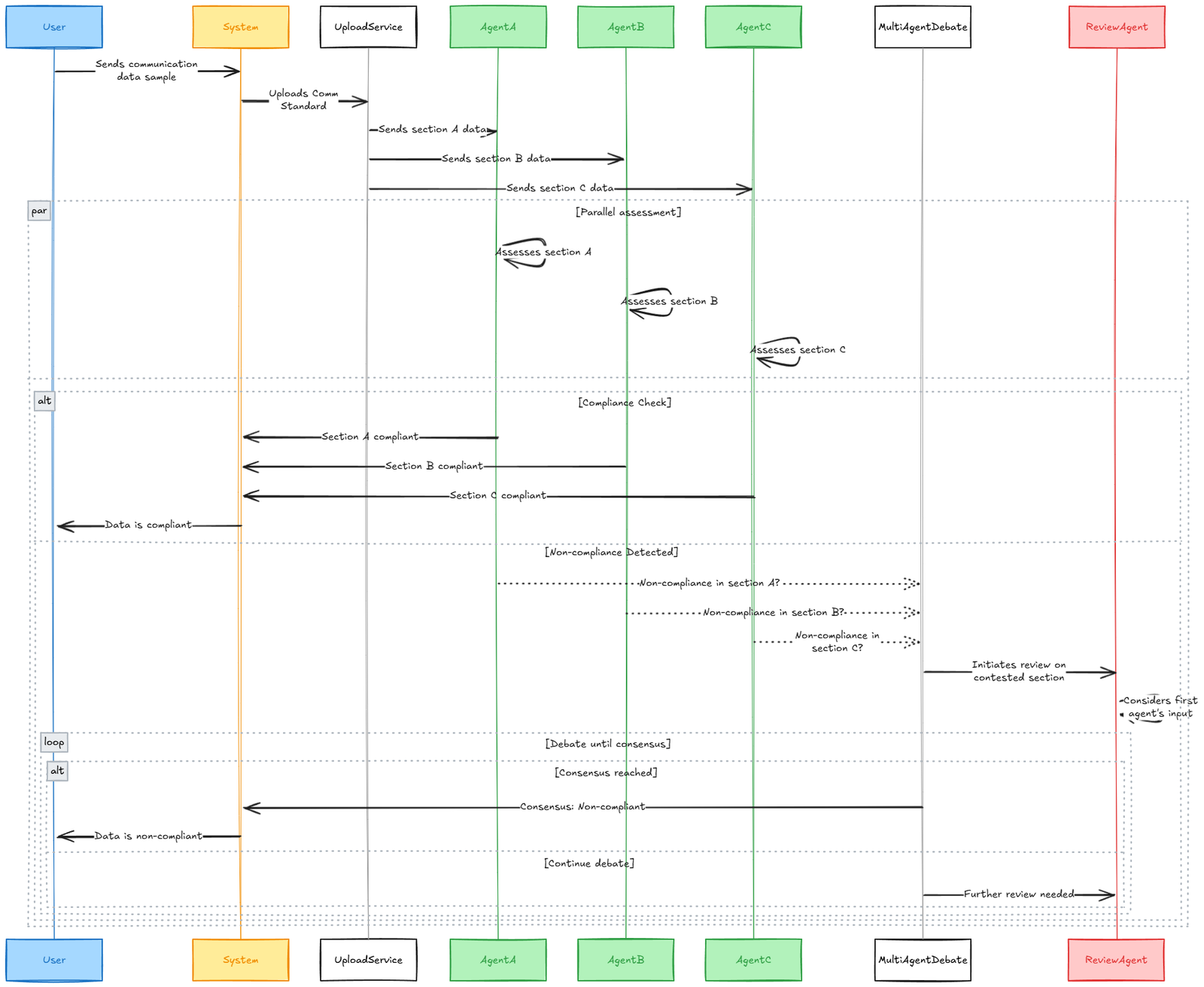

Fig: Sequence Diagram Showcasing Flow of Data

  1. Compliance Verification Phase
    • Key Components:
      • Compliance Analysis: Evaluates communication packets for alignment with structural and semantic requirements of the standard.
      • Error Detection: Identifies non-compliance issues such as invalid fields, missing attributes, or improper formatting.
      • Agent Collaboration: Employs multi-agent reasoning to debate and resolve conflicting assessments.
    • Output: A compliance score and detailed diagnostic reports with actionable recommendations.

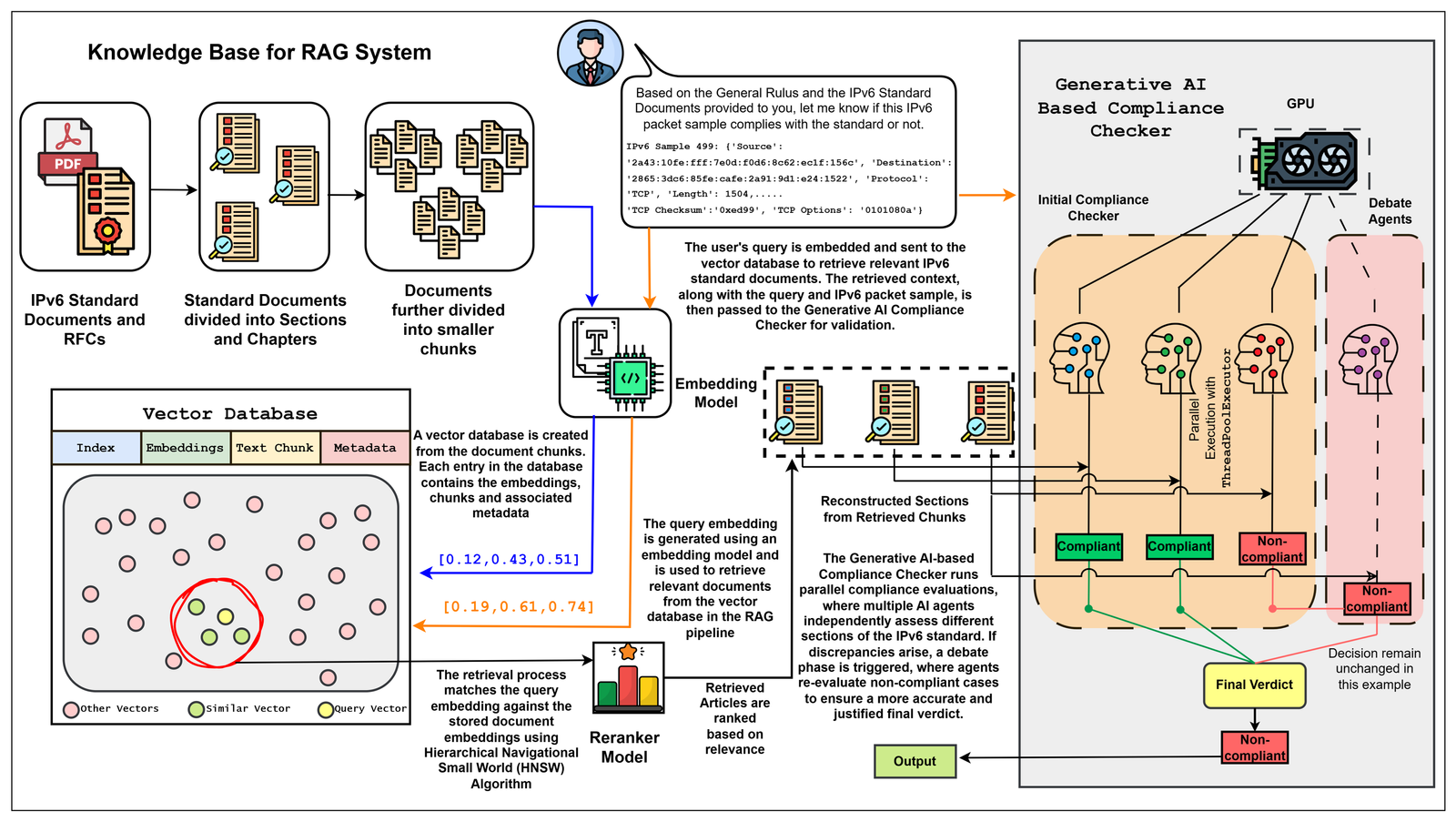

Fig: Framework for RAG enhanced Multi-agent based Compliance Verification Framework

  1. Protocol Equivalence Verification Phase
    • Core Algorithm: GPT-based models compare messages in different protocols (e.g., XML vs. JSON) for semantic equivalence.
    • Processing:
      • Analyzes data fields and hierarchical structures across formats.
      • Identifies mismatches or discrepancies in meaning.
    • Output: Equivalence decision (yes/no) with explanations for the verdict.
  1. Insights & Recommendations Phase
    • Actionable Feedback: Delivers compliance results, equivalence assessments, and optimization strategies for protocol alignment.
    • Visualization: Provides intuitive, interactive visualizations of compliance metrics and protocol relationships.

Key Features

  • Automated Compliance Verification: Streamlines the analysis of communication protocols against standards, reducing manual intervention.
  • Protocol Equivalence Verification: Ensures messages transmitted across different protocols have consistent semantic meaning.
  • Multi-Agent Reasoning: Enhances decision accuracy through collaborative analysis and debate among AI agents.
  • Dynamic Knowledge Retrieval: Adapts to evolving protocol standards and supports various communication formats.
  • Interactive Reporting: Generates detailed, user-friendly diagnostic reports for stakeholders.

Tools and Technologies

  • Generative AI: GPT-4-turbo for compliance and equivalence analysis.
  • Retrieval-Augmented Generation (RAG): Integrated with ChromaDB and vector-based retrieval systems.
  • Natural Language Processing: SentenceTransformers for semantic similarity calculations.
  • Programming and Platforms: Python, LangChain, OpenAI API.
  • Data Collection: Persistent data ingestion pipelines for multi-protocol data.

Outcomes and Impact

  1. Business Benefits:
    • Enables organizations to maintain protocol standards compliance efficiently.
    • Improves interoperability across diverse communication protocols.
    • Reduces operational risks associated with non-compliance and miscommunication.

“RAG-Enhanced Generative AI for Communication Standards Compliance and Protocol Equivalence Verification” sets a new benchmark for ensuring robust compliance and seamless interoperability in modern communication systems. By leveraging the power of AI and dynamic knowledge retrieval, this framework empowers organizations to meet rigorous standards and bridge the gap between disparate communication protocols efficiently.
